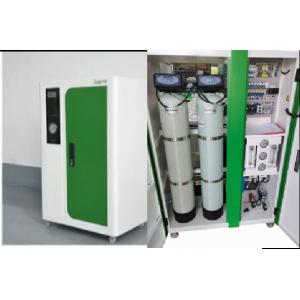

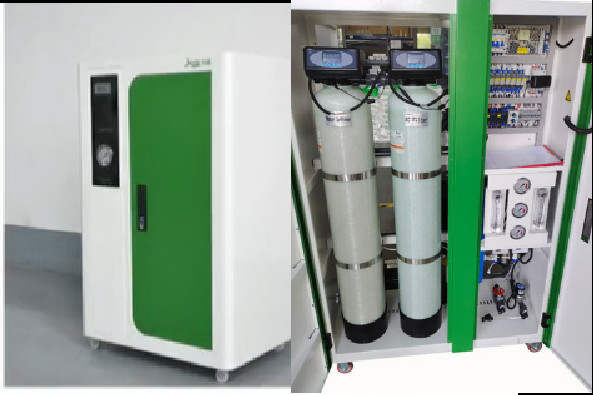

300 Liter Per Hour Single Pass RO System For Commercial Water
Purification
With the improvement of people's quality of life, people pay more
and more attention to the safety of drinking water, reverse osmosis
pure water machine is gradually becoming a must-have for modern
families.
Using reverse osmosis filtration technology, the core component is
reverse osmosis membrane. Only water molecules can pass through the
reverse osmosis membrane and remain in the water for drinking;
bacteria, viruses (including SARS virus and the world's smallest
mad cow disease virus), scale, heavy metal ions, radioactive
substances and other harmful substances, various pollutant
compounds and soluble salt ions It cannot pass through the
membrane, but is discharged as concentrated water. The reverse
osmosis pure water machine can guarantee the safety and reliability
of the effluent water quality, and there is no problem of water
pollution.
Purified water is obtained by intercepting various inorganic ions,
colloidal substances and macromolecular solutes in the water
through the reverse osmosis membrane. Due to its simple process and
low energy consumption, reverse osmosis has developed rapidly in
the past 20 years. It has been widely used in the desalination of
seawater and brackish water (see brine), boiler water softening and
wastewater treatment, and is combined with ion exchange to produce
high-purity water.
Its range of applications continues to expand, and it has been used
in the concentration of dairy products and juices, as well as the
separation and concentration of biochemical and biological agents.
Specification
| Model | LDM-III-A-100 | LDM-III-A-250 | LDM-III-A-300 |
|---|
| productivity | 100L/H | 250L/H | 300L/H |
| produced water conductivity | ≤15us/cm | ≤15us/cm | ≤15us/cm |
| Power | 1.5KW | 1.5KW | 1.5KW |
| Applicable original water pressure | 0.1-0.5mpa | 0.1-0.5mpa | 0.1-0.5mpa |
| Supply water pressure | 0.2-0.3mpa | 0.2-0.3mpa | 0.2-0.3mpa |
Working process :
Raw water--- AC filter--- Water Softener---Security filter---High
prssure pump---- RO membrane ---Pure water out
Our advantages:
- Rate of desalination up to 98%~99%
- Pure water obtaining rate is up to 75%
- Continuously purifying water for 24 hours
- PLC control automatic flushing function.
- Optional UV sterlilizer & Ozone generator
- Low operating cost and long life span.
Pictures
Pressure gauge
LCD
warehouse
package
